High Efficiency Small Soap Making Machine & Automatic Soap Stamping Machine with Manual Soap Cutter for Soap Noodles
100–150 kg/h Compact Soap Production System | Mixer + Three-Roller Mill + Plodder + Cutter in One Line
This all-in-one soap production setup is space-saving and highly efficient, tailored for small to medium-scale manufacturing of laundry bars, toilet soaps, bath soaps, and hotel-size soap pieces.
Mixing
Refining (three-roller mill)
Extruding (plodder)
Cutting

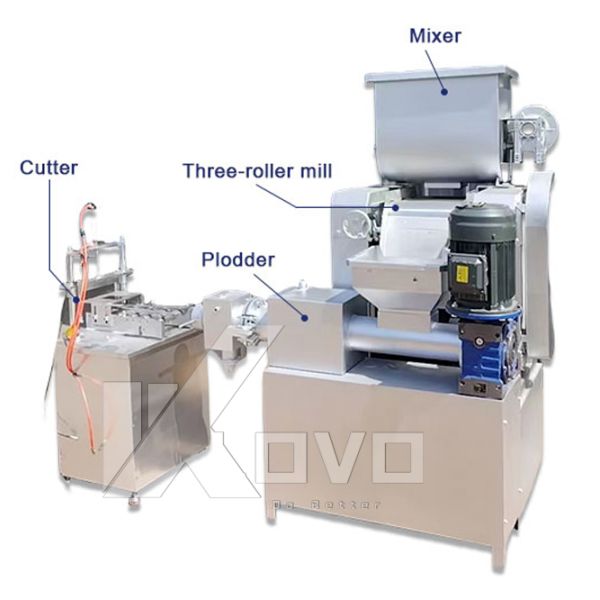

Four core functions in one system
What you get: Soap bars with reliable quality — smooth feel, even density, and shapes you can tailor to your needs.
Steady output: 100–150 kg per hour.
Best suited for: New soap factories and small businesses ready to start or grow their soap production.
Core Components & Specifications
| Component |
Key Specifications |
Material |
Power |
| Soap Mixer |
Output capacity: 100-200kg/h |
Carbon steel |
/ |
| Three-Roller Mill |
For fine refining of soap base |
Carbon steel |
4kW |
| Soap Plodder (Extruder) |
Continuous soap extrusion, output synchronized with cutter |
Carbon steel |
3-5.5kW |
| Soap Cutter |
Customizable molds for different sizes/shapes/flower patterns |
Carbon steel |
1kW |
What Makes the Materials Stand Out
Every component that touches the soap mixture is built with food-grade stainless steel — giving you reliable hygiene, rust resistance, and hassle-free cleaning over years of operation. The main frame, on the other hand, is made from tough carbon steel, which provides a solid structure and keeps maintenance costs low.
How Industrial Soap Is Made – Step by Step
Raw Material Mixing
In a soap mixer, ingredients such as soap noodles, additives, colorants, and fragrances are blended evenly — laying the groundwork for uniform quality.
Soap Refining
The mixed soap mass passes through a three-roller mill, where it is ground and refined to remove impurities and achieve a fine, smooth texture.
Soap Extrusion
A soap plodder then pushes the refined mixture through, forming a continuous, uniform bar with consistent density.
Cutting & Custom Shaping
A cutter slices the extruded soap into standard-sized bars. Interchangeable molds can then emboss custom logos or patterns, allowing for personalized finished products.
Technical Specifications
| Parameter |
Details |
| Total Output Capacity |
100-150kg/h |
| Total Installed Power |
8-11.5kW (based on configuration) |
| Voltage |
Customizable (380V/415V/220V, 50/60Hz) |
| Machine Material |
Carbon steel main frame, stainless steel material contact parts |
| Customization Support |
Mold size/shape, power configuration, voltage |
| Application |
Laundry soap, toilet soap, bath soap, hotel soap |

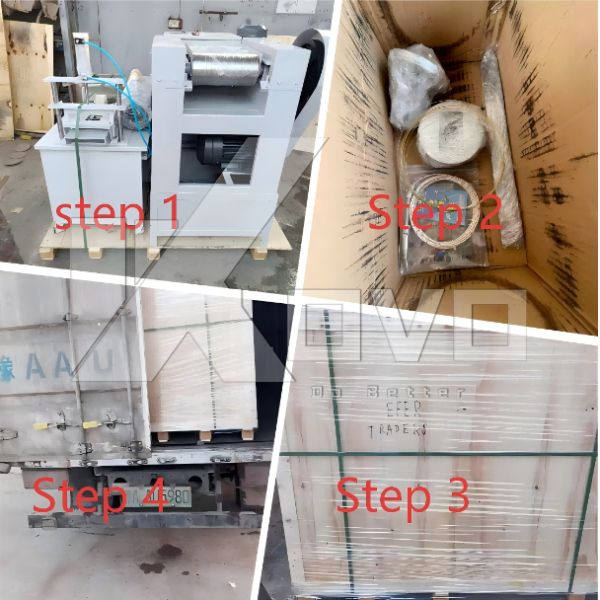

Packaging and Shipping
Packaging & After-Sales Service
Packaging
Adopted standard export wooden crate packaging, providing full protection to suit long-distance sea and land transportation.
Warranty Service
The whole machine enjoys a 1-year warranty, excluding consumable and wearing parts.
Technical Support
Free provision of installation manuals and operation tutorial videos, plus professional online guidance.
Lifetime fault troubleshooting service and spare parts supplied at favorable prices.
Custom mold design and manufacturing support available.
