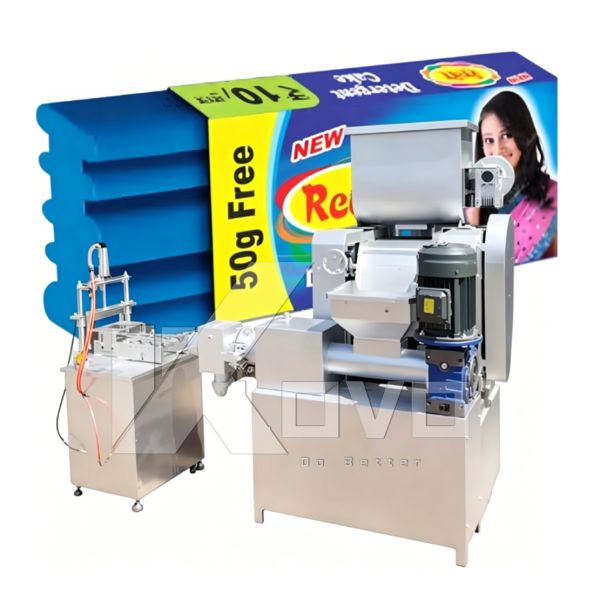

Small Soap Making Machine and Soap Stamping Machine with Precision Soap Cutter for Soap Noodles Processing
Product Overview
100–150 kg/h Compact Soap Production Line | Mixing + Milling + Extruding + Cutting in One System
This space-saving, high-performance soap line is designed for small to medium-scale bar soap production — including laundry, toilet, bath, and hotel soaps. It combines four essential processes (blending, refining, extruding, and slicing) into a single smooth workflow. The result: soap bars with consistent quality, even texture, uniform density, and adjustable shapes. With a steady throughput of 100–150 kg per hour, this line is a great fit for startups and small soap businesses aiming to begin or scale up their manufacturing.
Core Components & Specifications
| Component | Key Specifications | Material | Power |
|---|
| Soap Mixer | Output capacity: 100-200kg/h | Carbon steel | / |
| Three-Roller Mill | For fine refining of soap base | Carbon steel | 4kW |
| Soap Plodder (Extruder) | Continuous soap extrusion, output synchronized with cutter | Carbon steel | 3-5.5kW |
| Soap Cutter | Customizable molds for different sizes/shapes/flower patterns | Carbon steel | 1kW |
What makes the materials stand out:
Every component that touches the soap mixture is built with food-grade stainless steel — so you get excellent hygiene, resistance to rust, and effortless cleaning over years of use. The main frame, on the other hand, is made from sturdy carbon steel, giving the machine a solid structure while keeping maintenance costs low.
Why Choose This 100–150 kg/h Small Soap Production Line – Key Features & Benefits
Make Different Soaps for Different Customers
The system uses swappable molds, so you can produce bars in various sizes, shapes, and embossed designs. That means one line can handle laundry soap, toilet soap, and specialty bath products — helping you serve a wider range of buyers.
Consistent Output, Batch After Batch
The plodder and cutter work in sync to deliver soap bars with reliable size, weight, and texture — no more warping or uneven density. Meanwhile, the three-roller mill refines the mix thoroughly, giving every batch a smooth, premium-quality soap base.
Built for Soap Business Startups on a Budget
Its compact footprint doesn't eat up floor space, and the straightforward controls are easy to learn. Low power use and simple upkeep keep long-term operating costs down — a smart fit for anyone new to soap manufacturing.
Safe, Clean, and Hygienic
Any part that contacts the soap is stainless steel, meeting strict safety standards for soap production. This also makes cleaning fast and prevents cross-contamination when switching between batches.
Step-by-Step from Mixing to Finished Bars
Step 1 – Mixing: Soap noodles, additives, colorants, and fragrances get blended evenly in the soap mixer.
Step 2 – Refining: The three-roller mill grinds and smooths the mixture into a fine, even texture.
Step 3 – Extrusion: The soap plodder pushes the refined material out as a steady, uniform bar.
Step 4 – Cutting & Shaping: The cutter slices bars to your chosen size and presses in custom patterns using the interchangeable molds.
Technical Specifications
| Parameter | Details |
|---|
| Total Output Capacity | 100-150kg/h |
| Total Installed Power | 8-11.5kW (based on configuration) |
| Voltage | Customizable (380V/415V/220V, 50/60Hz) |
| Machine Material | Carbon steel main frame, stainless steel material contact parts |
| Customization Support | Mold size/shape, power configuration, voltage |
| Application | Laundry soap, toilet soap, bath soap, hotel soap |
Shipping, Warranty & Support
Packaging
Shipped in standard export wooden cases — fully secured for long journeys by sea or land.
Warranty
Full machine covered for 1 year (excluding wear-and-tear parts).
Technical Support
Free setup guides and instructional videos
Online help whenever you need it
Fault-finding assistance and reasonably priced spare parts
Custom mold design and manufacturing support
