Complete Small Scale Liquid Soap Production Line – Water Treatment, Mixing, Filling, Capping & Labeling
Product Title
Automatic Liquid Soap Production Line | Complete Small Scale Line with Water Treatment, Mixing Tank, Filling, Capping & Labeling Machine
Subtitle
Ideal for small factories & startups | 50–500L/h capacity | GMP & CE compliant | All stainless steel 304/316L
Key Selling Points
- All-in-one solution: Water treatment → mixing → filling → capping → labeling
- Small footprint: Compact layout, easy installation & operation
- High quality: SUS304/SUS316L contact parts, GMP & CE certified
- Multi-product: Liquid soap, hand sanitizer, shampoo, body wash, detergent
- Cost-effective: Low investment, fast ROI, 24/7 after-sales support
Product Description

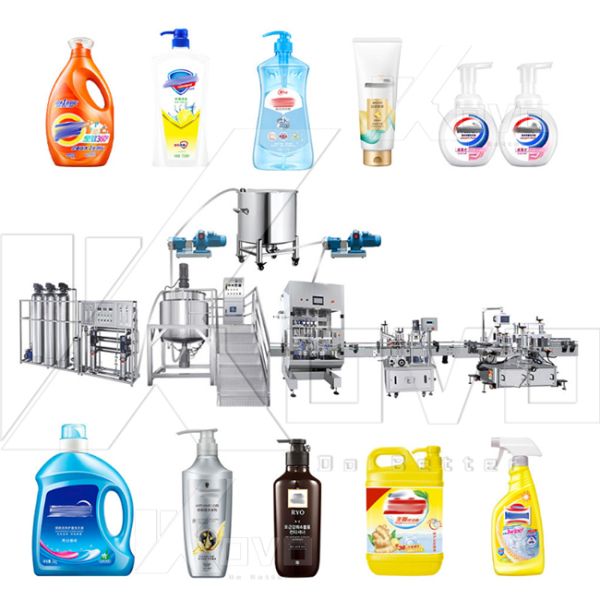

Our small liquid soap making line is a complete production system designed for small to medium manufacturers and startups. It integrates water treatment system, mixing reactor tank, storage tank, automatic liquid filler, capper, and labeler into one streamlined workflow.
The line is built with food-grade stainless steel 304/316L and features PLC control, variable speed drive, and high-shear homogenization. It can produce 50 to 500 liters per hour of liquid soap, hand sanitizer, shampoo, body wash, dish soap, and other daily chemical products.
Working Flow
- Water Treatment – Tap water → sand filter → softener → RO pure water (≤10μS/cm)
- Mixing & Reaction – Pure water + oils + additives → heating (80–90°C) → stirring → homogenization → cooling (40–50°C)
- Storage & Degassing – Finished liquid → holding tank → degassing & aging (2–8h)
- Filling – Automatic piston filling (±0.5% accuracy)
- Capping – Automatic cap feeding & tightening (pump cap/screw cap)
- Labeling – Automatic self-adhesive labeling (round/flat bottles)
- Coding & Packing – Date printing → carton packing
Technical Parameters
| Item |
Specification |
| Capacity |
50L/h, 100L/h, 200L/h, 300L/h, 500L/h |
| Voltage |
220V/380V, 3-phase |
| Material |
SUS304 (outer), SUS316L (contact parts) |
| Heating |
Electric heating / steam heating (optional) |
| Mixing Speed |
0–65rpm (adjustable) |
| Homogenizer Speed |
0–3000rpm (adjustable) |
| Filling Accuracy |
±0.5% |
| Control |
PLC + touch screen |
| Certification |
CE, GMP |
| Weight |
300–800kg |
| Dimension |
2500*1200*1800mm (custom) |
Machine List (Standard Configuration)
- RO Water Treatment System – 50–1000L/h, removes impurities & hardness
- Jacketed Mixing Tank – 50–500L, with stirrer, homogenizer, heater, and thermometer
- Finished Product Storage Tank – 50–500L, with level sensor
- Automatic Piston Filling Machine – 4–12 nozzles, for liquid/viscous products
- Automatic Capping Machine – For pump caps, flip-tops, and screw caps

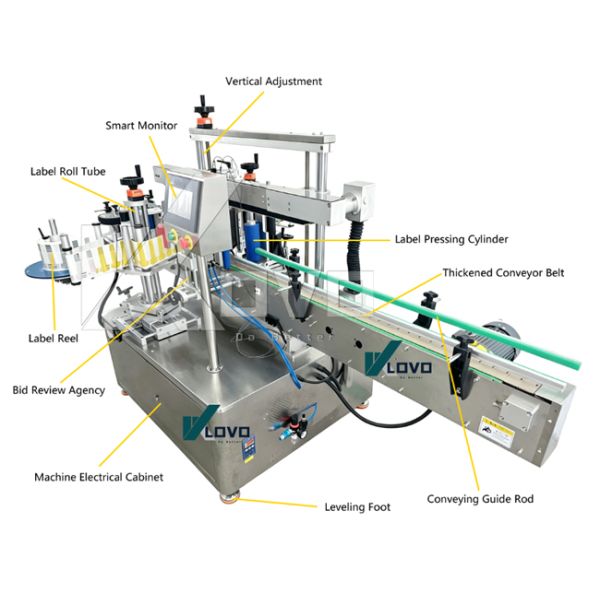

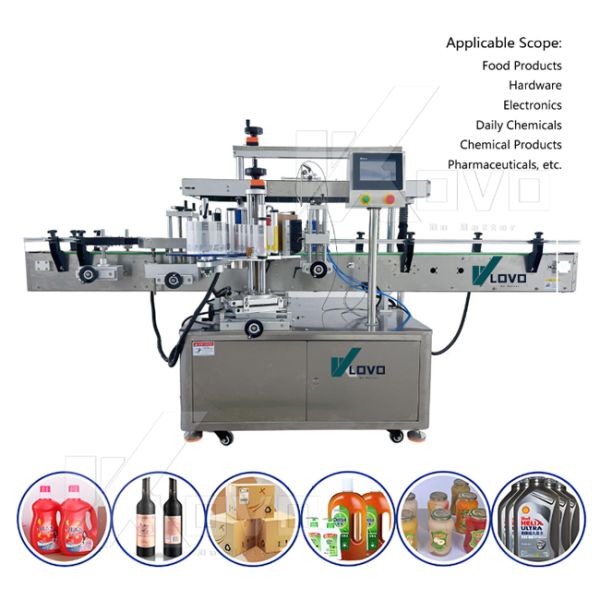

- Automatic Labeling Machine – Single/double side labeling for round/flat bottles
- Conveyor System – Stainless steel chain conveyor
- Auxiliary Equipment – Feed pump, filter, control cabinet, etc.
Applications
- Liquid soap / hand wash
- Hand sanitizer / disinfectant
- Shampoo / conditioner
- Body wash / shower gel
- Dish soap / laundry detergent
- Lotion / cream (with optional homogenizer)
Packaging & Delivery
- Packing: Standard export wooden case (fumigated)
- Delivery: 15–25 days after deposit
- Shipping: By sea/air/express
- Warranty: 12 months (free parts & technical support)
FAQ
Q: What is the minimum order quantity?
A: 1 set (customization available).
Q: Can you customize the line capacity?
A: Yes, 50–500L/h available.
Q: Do you provide installation & training?
A: Yes, we provide online/offline training and installation guidance.
Q: What is the after-sales service?
A: 24/7 online support, 12-month warranty, and lifetime maintenance.
